Overhead Door Top Seals & Top Caps
Advanced Plastic Top Seal Products
Designed To Fit All Standard Styles And Sizes.
Custom Plastic Extrusion Since 1981.

Superior Overhead Door Top Caps and Top Seals

Offered in various lengths and on rolls, our award-winning co-extruded, dual durometer PVC top cap and overhead door top seal profiles fit virtually all styles of residential and commercial overhead garage door panels.

Our seals are available in numerous configurations including:

  • Single flap seals
  • Dual flap seals
  • Various flap lengths
  • Seals for flat-style panels
  • Seals for tongue-and-groove-style panels

Start by browsing the selection of overhead door top seals and top caps below or contact us at 847-674-2070 for assistance.

TC-134

1-3/4″ TOP CAP

1-3/4″ TOP CAP

8′, 9′, 10′, 12′, 14′, 16′, 18′

Black

12 pcs per box

Call about additional lengths.

2″ Add-on for overlap may be available.

TC-138

1-3/8″ TOP CAP

1-3/8″ TOP CAP

8′, 9′, 10′, 12′, 14′, 16′, 18′

Black

12 pcs per box

Call about additional lengths.

2″ Add-on for overlap may be available.

TC-158

1-5/8″ TOP CAP

1-5/8″ TOP CAP

8′, 9′, 10′, 12′, 14′, 16′, 18′

Black

12 pcs per box

Call about additional lengths.

2″ Add-on for overlap may be available.

TC-200

2″ TOP CAP

2″ TOP CAP

8′, 9′, 10′, 12′, 14′, 16′, 18′

Black

8 pcs per box

Call about additional lengths.

2″ Add-on for overlap may be available.

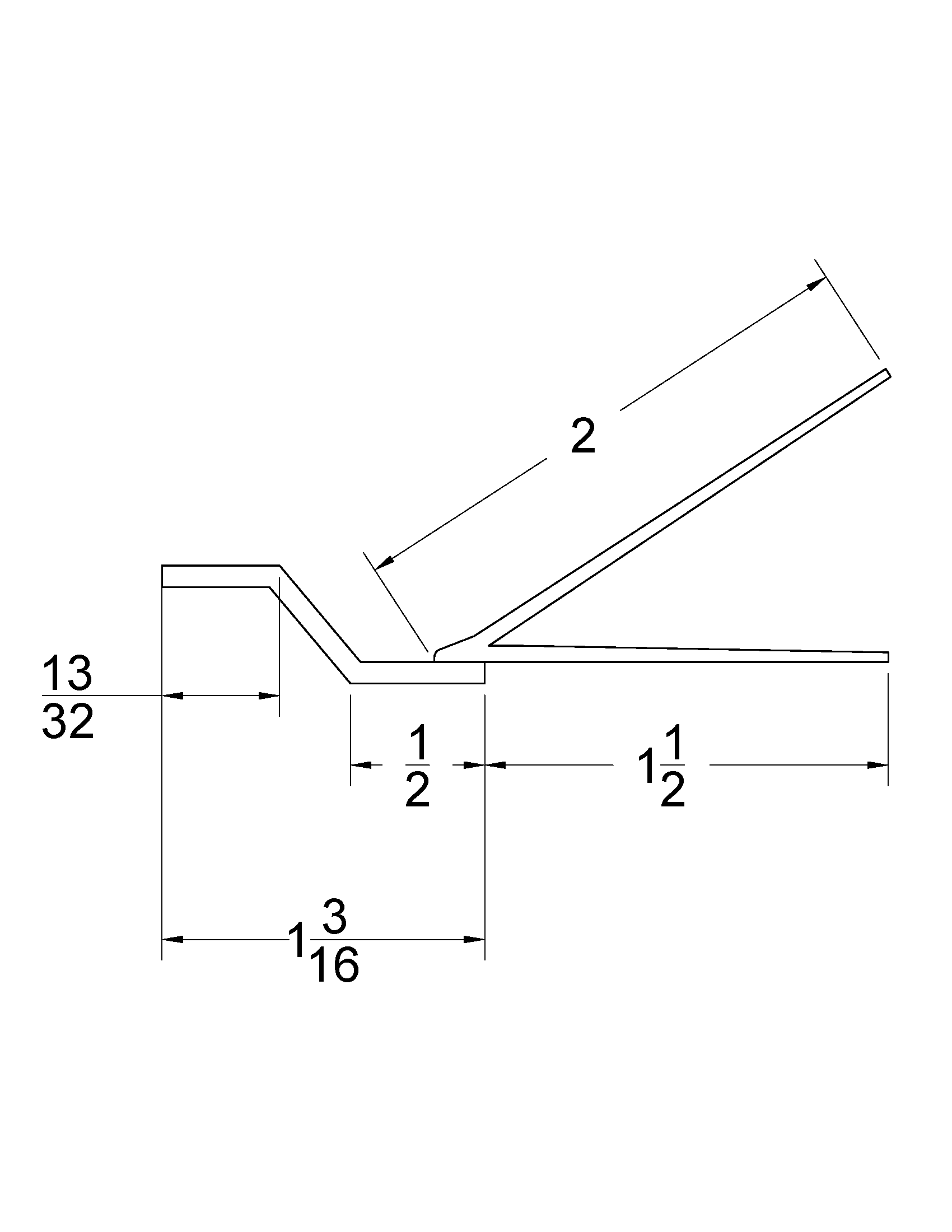

TS-14

TOP SEAL, DOUBLE FLAP

TOP SEAL, DOUBLE FLAP

8′, 9′, 10′, 12′, 14′, 16′, 18′ or 150′ per roll

Black

15 pcs per box for cut lengths

OR

(2) 150′ rolls per box = 300′ per box

Top flap 2″, bottom flap 1-1/2″¬

Call about additional lengths.

2″ Add-on for overlap may be available.

TS-15

1-3/4″ TOP SEAL, SINGLE FLAP

1-3/4″ TOP SEAL, SINGLE FLAP

100′ per roll

Black

(2) 100′ rolls per box = 200′ per box

TS-200

2″ TOP SEAL, SINGLE FLAP

2″ TOP SEAL, SINGLE FLAP

150′ per roll

Black

(2) 150′ rolls per box = 300′ per box

TS-300

3″ TOP SEAL, SINGLE FLAP

3″ TOP SEAL, SINGLE FLAP

100′ per roll

Black

(1) roll per box
